A lathe Emulation System

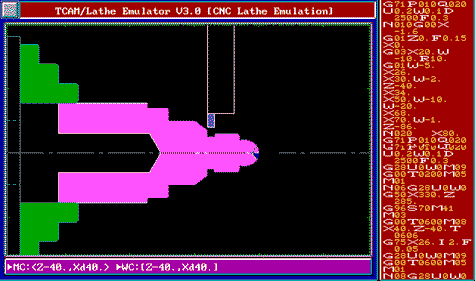

The LEMU IITM is a PC-based Lathe emulation program used for simulating the actual turning process with given CNC code.  With the capability to show the simulated process with different shape of chucks, tailstocks and form cutters, LEMU II is your ideal tool for CNC programming check and safeguard against potential process fault.


System Requirement:

  • System Unit: IBM PC or compatible (80286 and up)
  • Operating System: MS-DOS or PC-DOS version 3.0 or later
  • Main Memory: 640KB RAM minimum
  • Hard Disk Space: 2MB
  • Display: Standard VGA
  • Input Device: Mouse

Software Features:

  • Versatile cutting emulation feature.
  • Provides 2-speed cutting process simulation.
  • Provides cycle time calculation.
  • Provides stepping or continuous emulation modes.
  • Direct  measuring of processed workpiece dimension for program check.
  • Provides zoom feature for detail viewing.
  • Processed workpiece drawing available in DXF format.
  • Powerful CNC program editing feature.
  • Supports macros and subprogram calls.
  • Provides tool library function.
  • NC program conversion feature.
  • Built-in DNC feature.
  • Tool specification
    • Left/right hand, front clearance, side clearance and round nose compensation of inner/out cutter.
    • Various angles and nose radius of threading tool.
    • Width and fillet of grooving tool.
    • Formcutter imported from CAD system in DXF file.
  • Recognizable code
    • G(Preparatory) Functions: G00, G01, G02, G03, G04, G20, TG21, G28, G29, G30, G33, G40, G41, G42.
    • CANNED CYCLES: G70, G71, G74, G75, G76, G77, G78, G79, G90, G92, G94, G95, G96, G97.
    • M(Auxiliary) Functions: M00, M01, M02, M03, M04, M05, M07, M08, M09, M26, M27, M40, M41, M42, M98, M99.
